digitus16

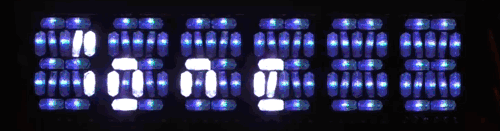

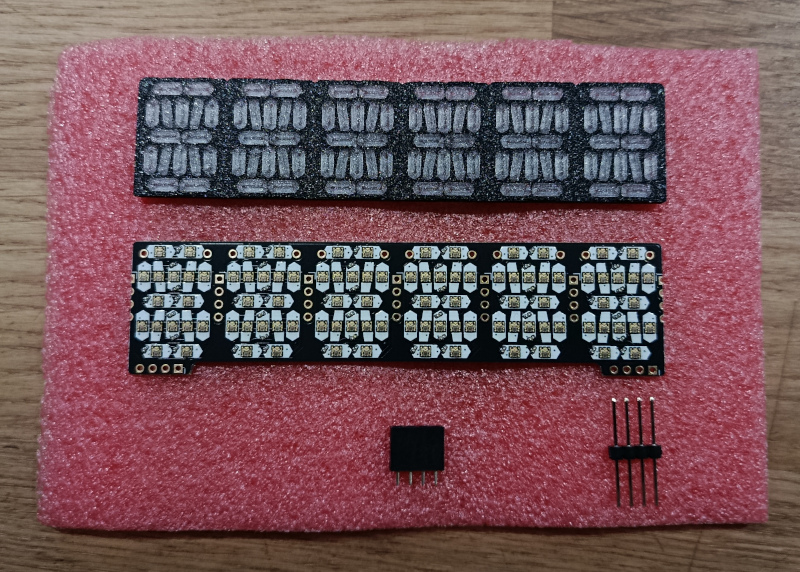

digitus16 is a small 16-segment RGB display. it comes as a six digits display on a single PCB. comes with a 3d-printed screen as bezel and diffusor.

software

comes with a micropython library that runs on

• ESP32
• Raspberry Pi Pico (and variants)
• python on linux (basically any linux with a /dev/spiX.Y)

hardware

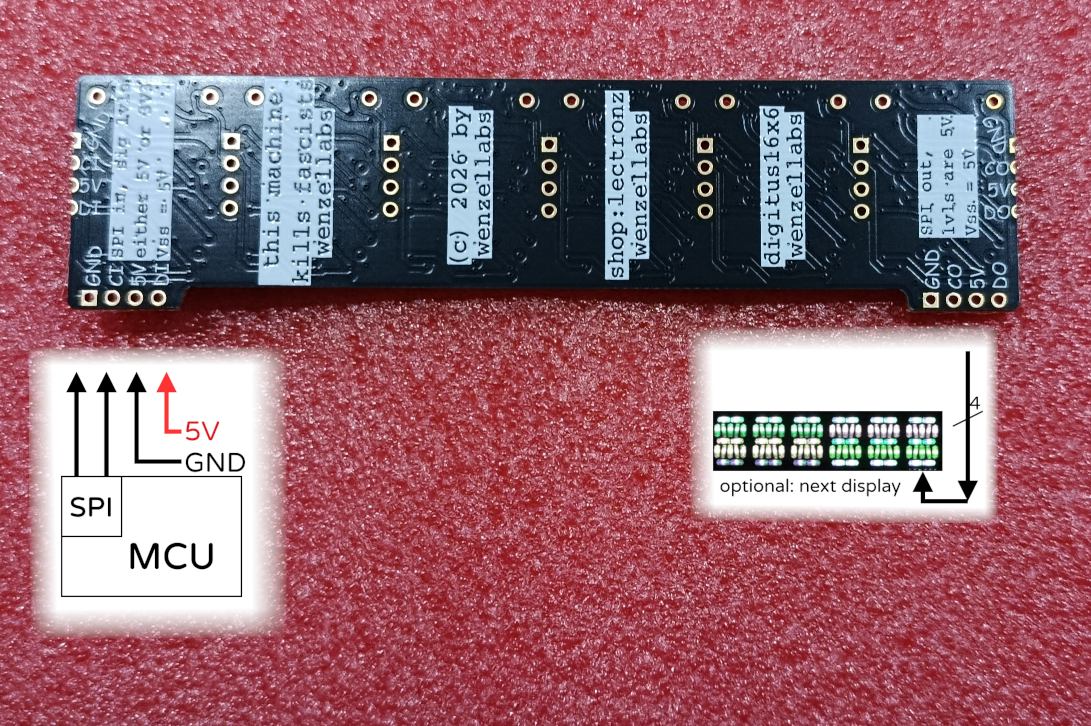

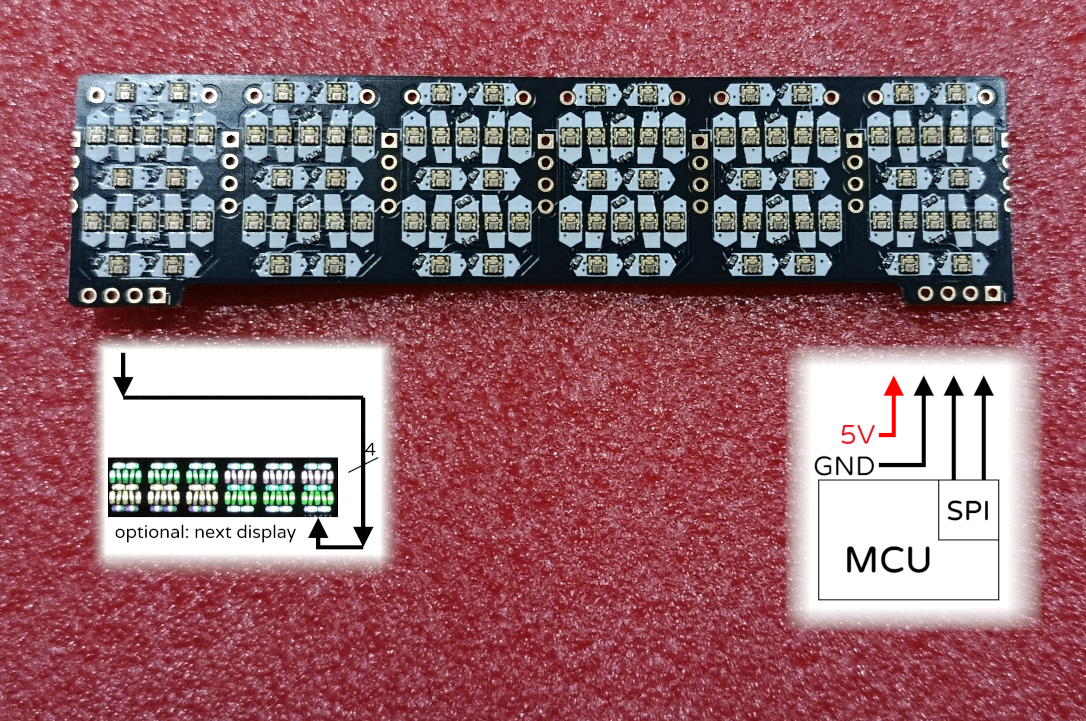

5V SPI controlled can be daisy-chained

mechanical

• display height: 26.7mm
• display height center: 24.5mm
• display width: 106.7mm
• display thickness: 5.0mm (PCB + 3d-printed bezel and diffusor)

3D-models available!

Photos
