breakout boards

I created a small set of breakout boards that come in handy for prototyping, development or repair.

there's three different ones. I either sell a collection of all three, or one model alone.

bebop, "better breakout pcb"

• 0.4 mm pitch, up to 20 pins
• 0.5 mm pitch, up to 20 pins
• 0.65 mm pitch, up to 20 pins
• 0.8 mm pitch, up to 20 pins
• 1 mm pitch, up to 20 pins
• 1.27 mm pitch, up to 20 pins
• 1.5 mm pitch, up to 16 pins

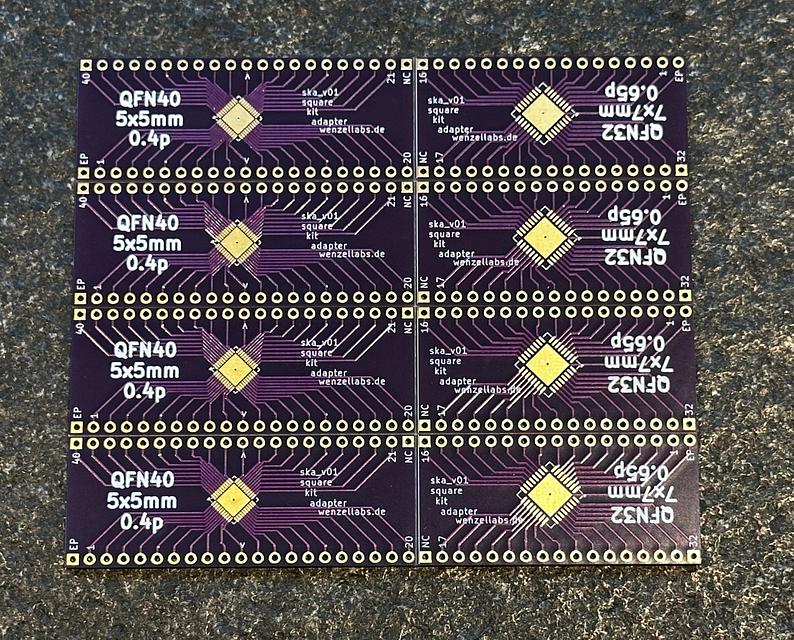

ska, "square kit adapter"

• QFN40, 0.4 mm pitch, 5x5 mm
• QFN32, 0.65 mm pitch, 7x7 mm
• QFN32, 0.5 mm pitch, 5x5 mm
• QFN40, 0.5 mm pitch, 6x6 mm

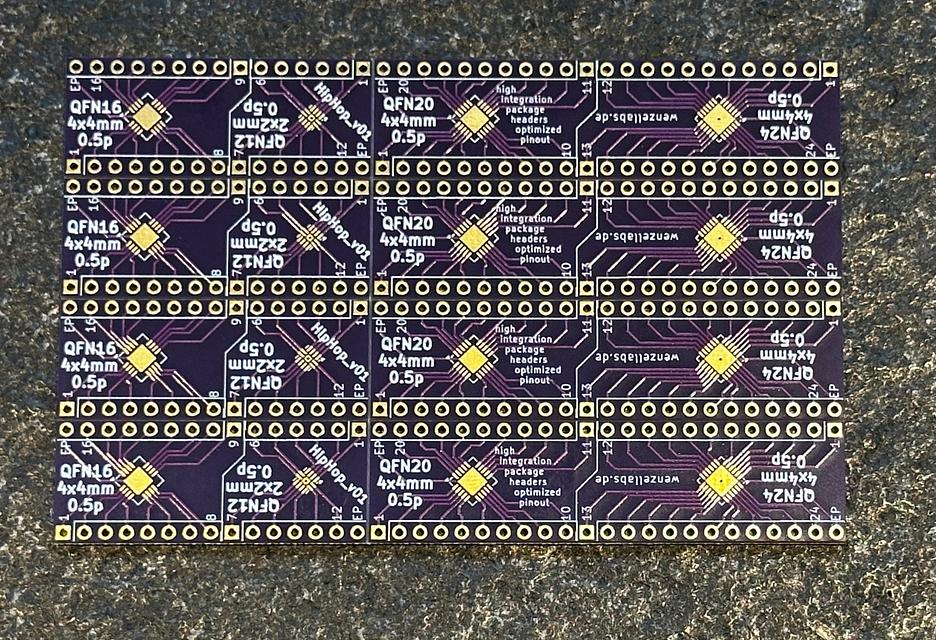

hiphop, "high integration package headers optimized pinout"

• QFN16, 0.5 mm pitch, 4x4 mm
• QFN12, 0.5 mm pitch, 2x2 mm
• QFN20, 0.5 mm pitch, 4x4 mm
• QFN24, 0.5 mm pitch, 4x4 mm
• QFN16, 0.8 mm pitch, 5x5 mm
• QFN12, 0.5 mm pitch, 3x3 mm
• QFN20, 0.65 mm pitch, 5x5 mm
• QFN24, 0.65 mm pitch, 5x6 mm
