PMOD VGA

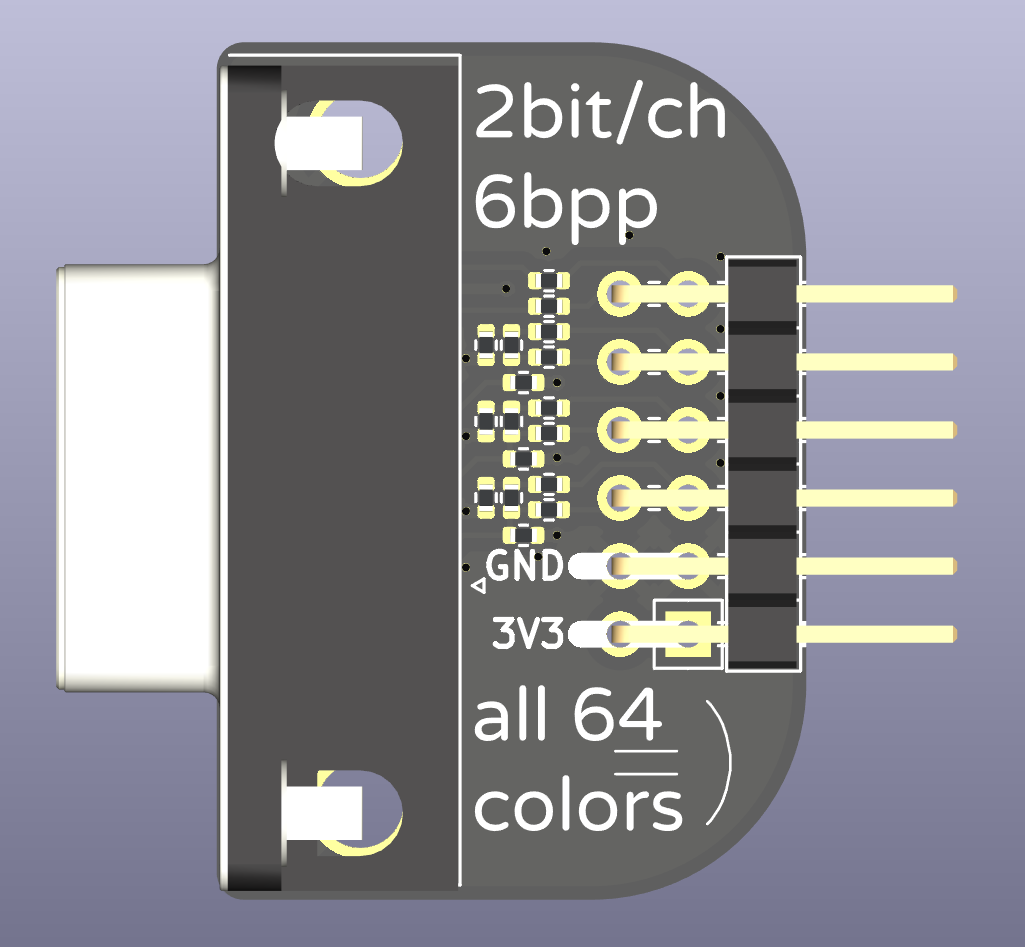

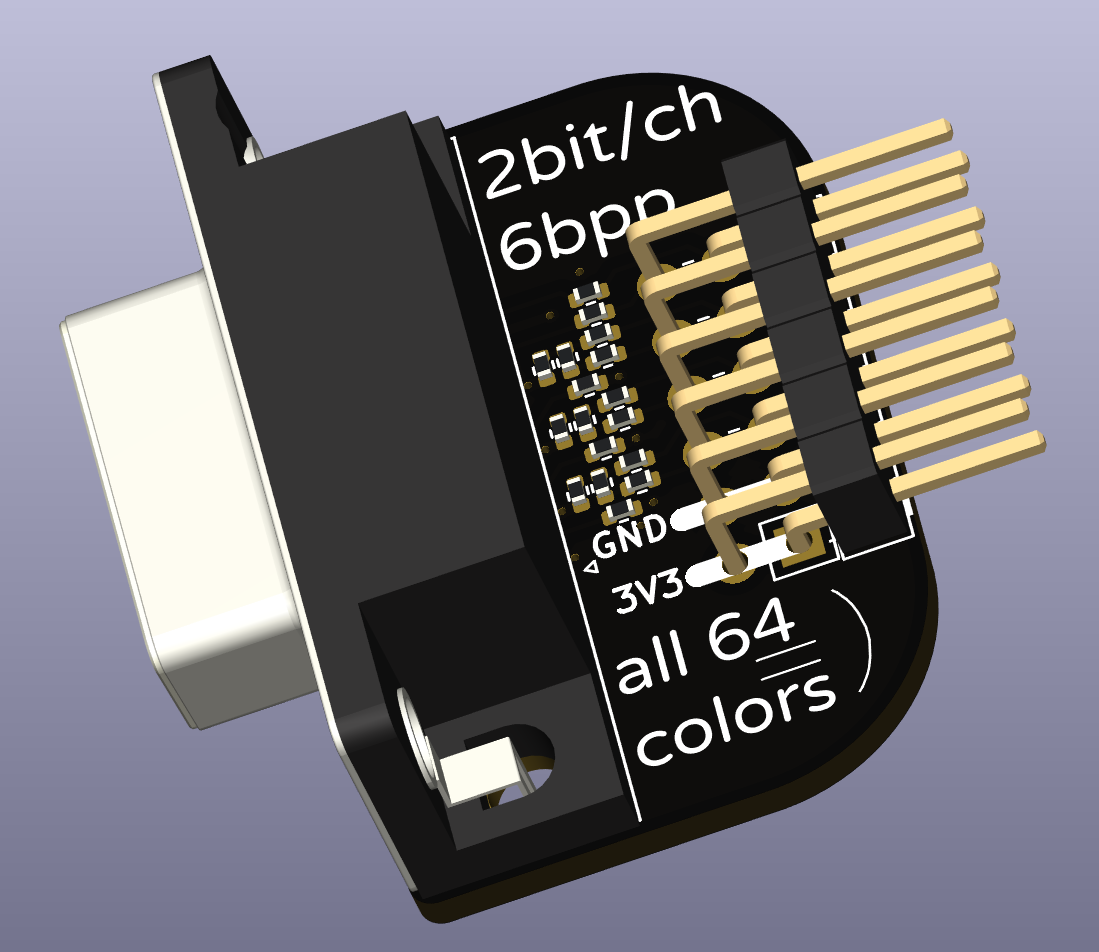

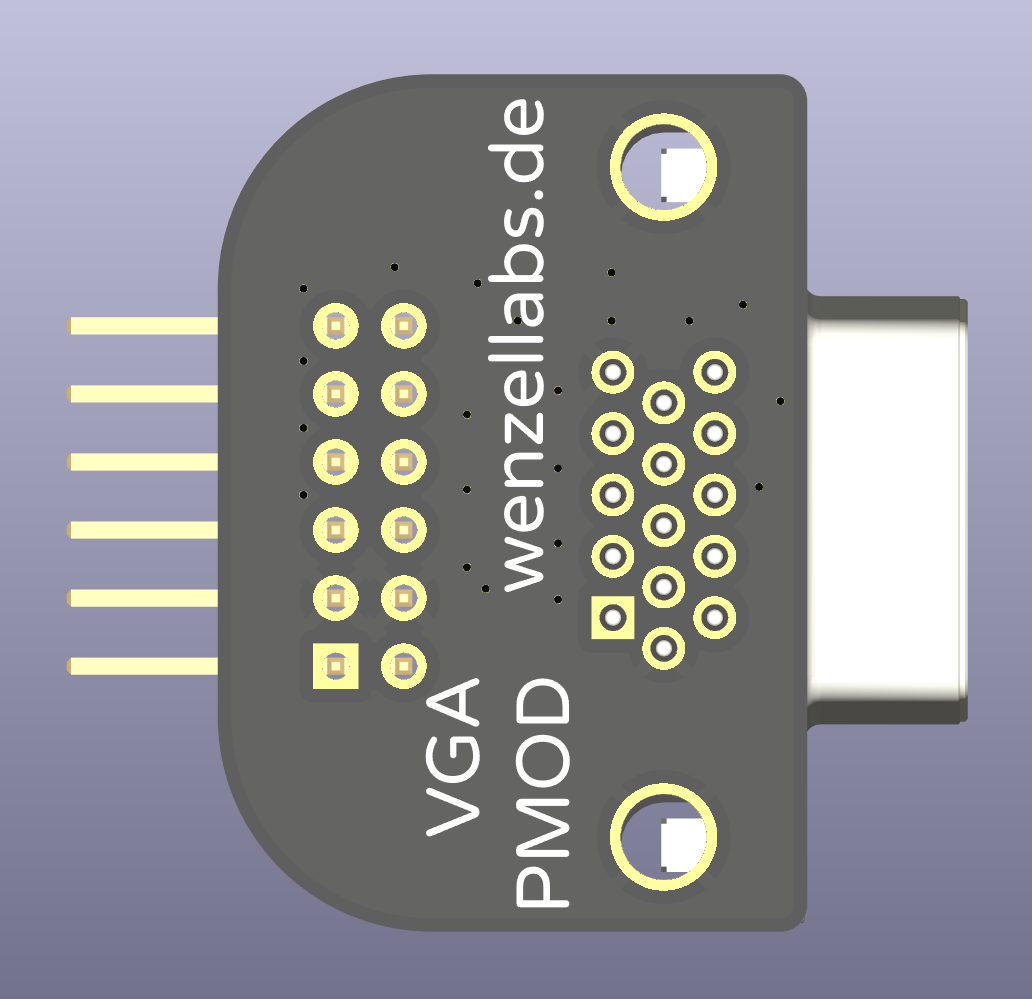

a single PMOD VGA interface

• 2 bits per channel
• 6 pbb

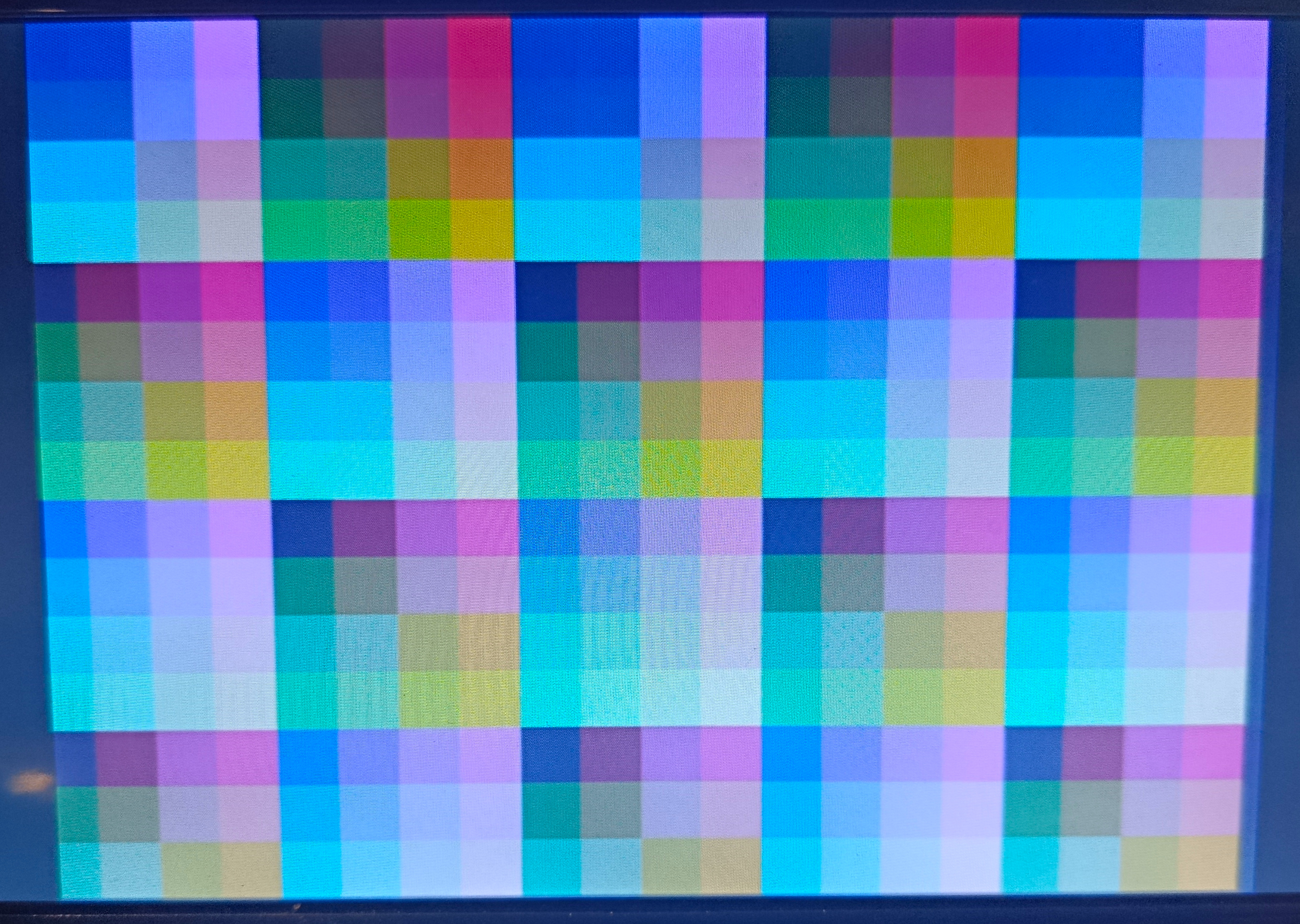

• 64 colors in total

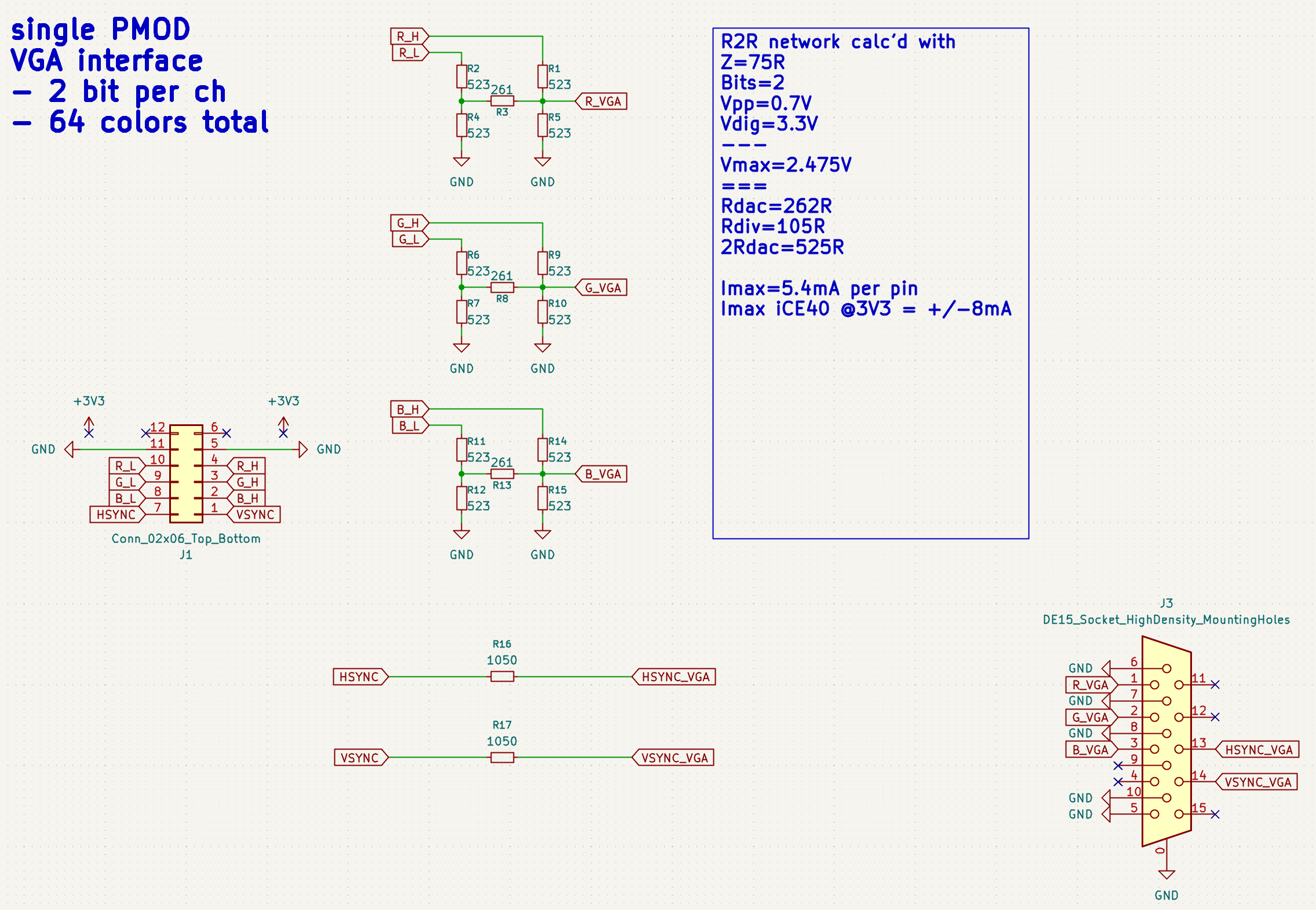

• passive R2R network

pinout:

PMOD pin  1:  vsync
PMOD pin  2:  blue_hi
PMOD pin  3:  green_hi
PMOD pin  4:  red_hi

PMOD pin  5:  GND
PMOD pin  6:  3V3 (unused)


PMOD pin  7:  hsync
PMOD pin  8:  blue_lo
PMOD pin  9:  green_lo
PMOD pin 10:  red_lo

PMOD pin 11:  GND
PMOD pin 12:  3V3 (unused)

SKU: WLP5342 HS code: 85340011

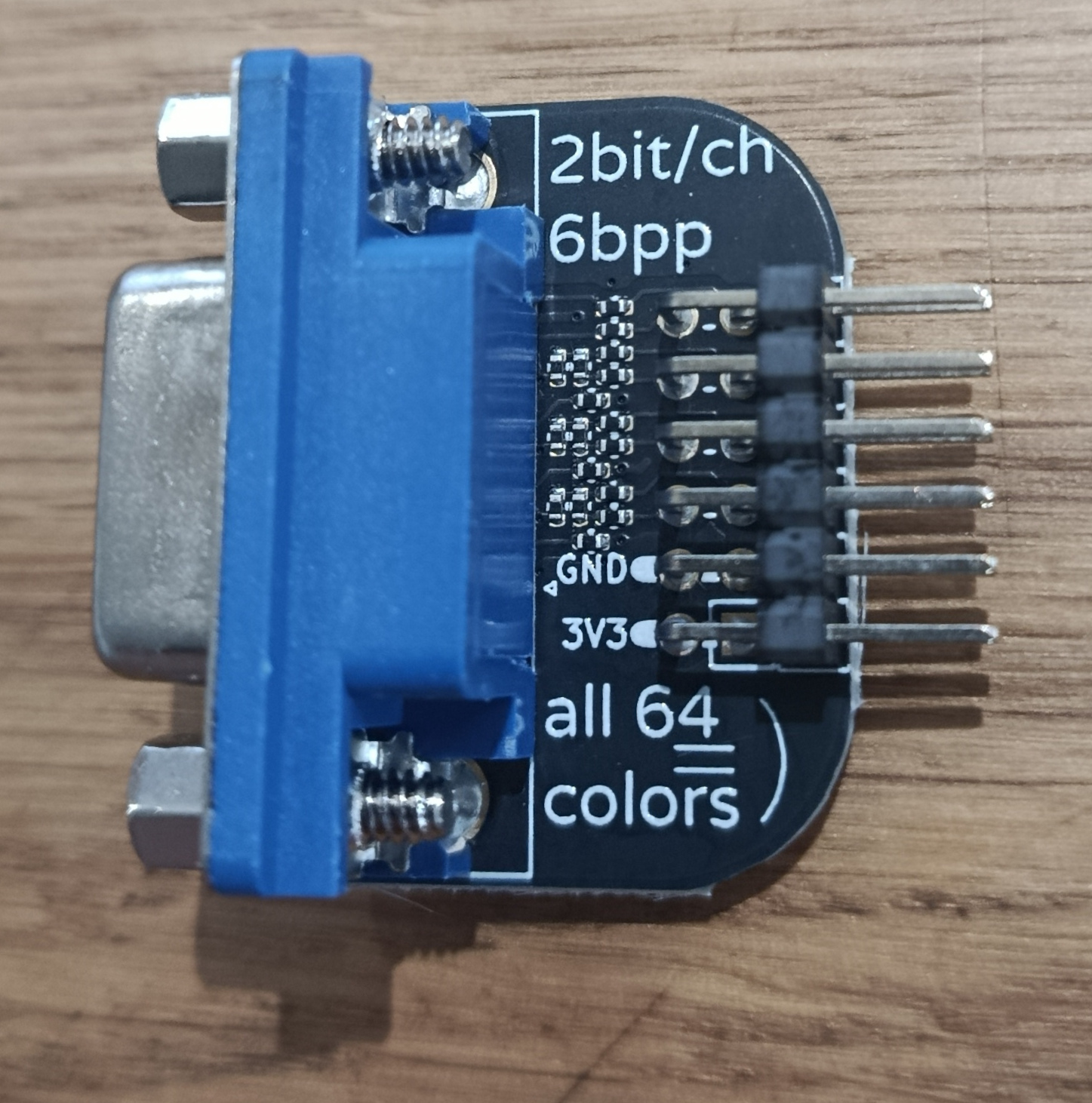

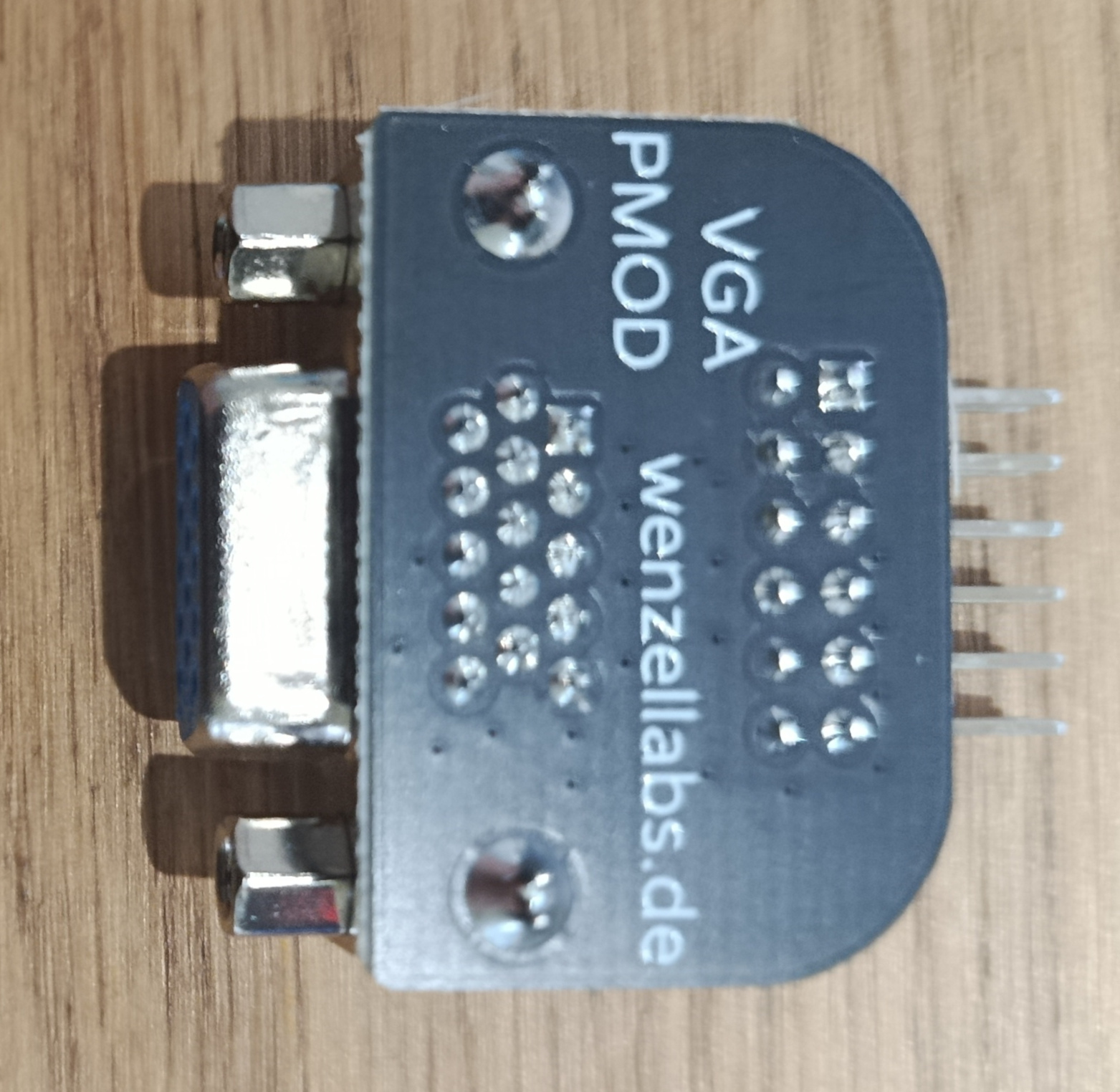

Photos
