KIKLOP

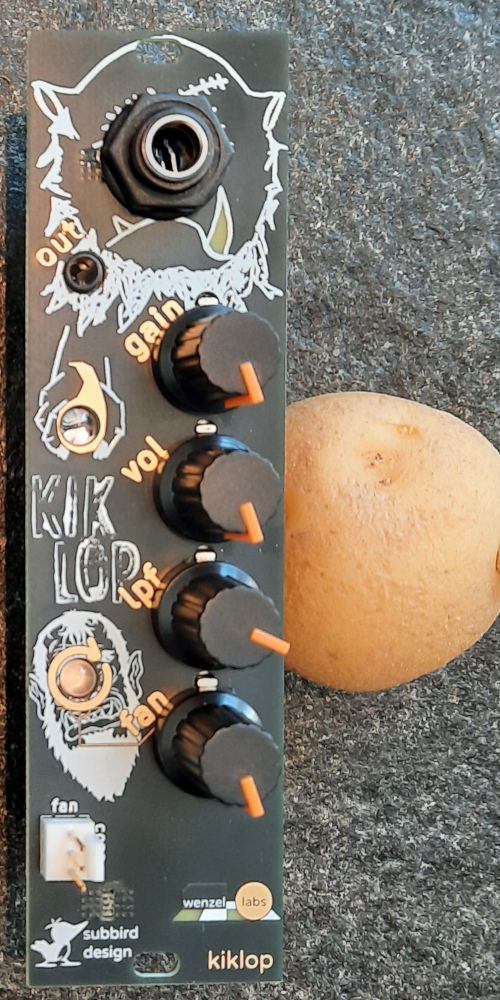

the KIKLOP is a eurorack module that turns light to sound.

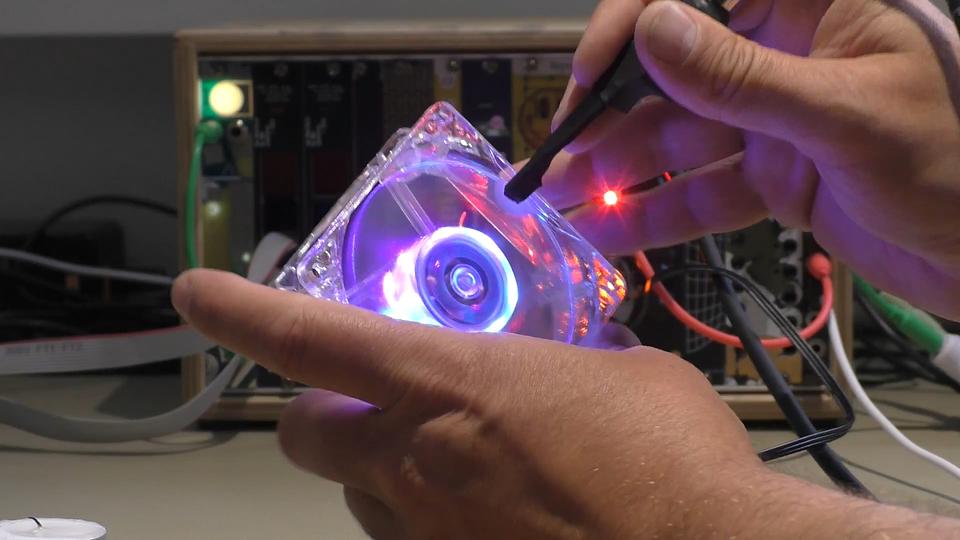

for various experiments it comes with two speed controllable fans, one of which has an RGB color changer. and there's a candle LED built in the module for fancy PWM sounds.

obviously most great sounds lie in exploring the lights and displays and indicators in your studio!

tech

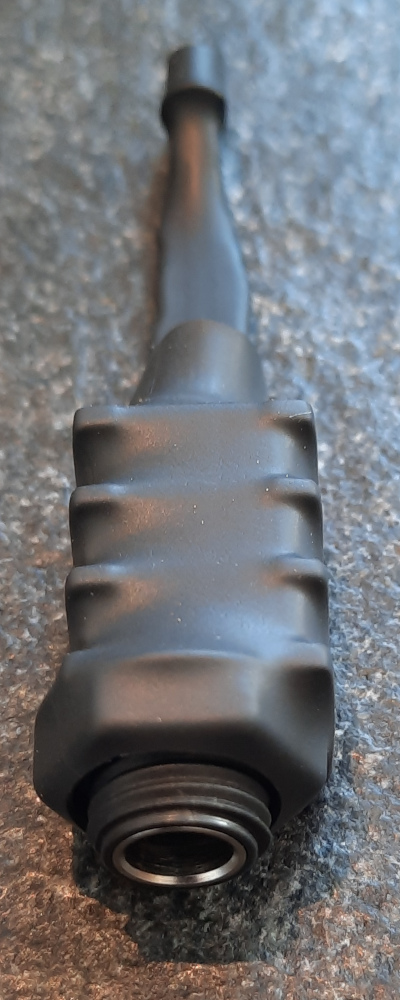

the KIKLOP eurorack module connects to a PIN photo diode light sensor on a small board through a 6.3mm mono audio cable. the sensor and the jack are always part of all KIKLOP versions, kit or fully assembled, with or without cable.

optionally you can purchase a 5m mono audio cable with 6.3mm plugs.

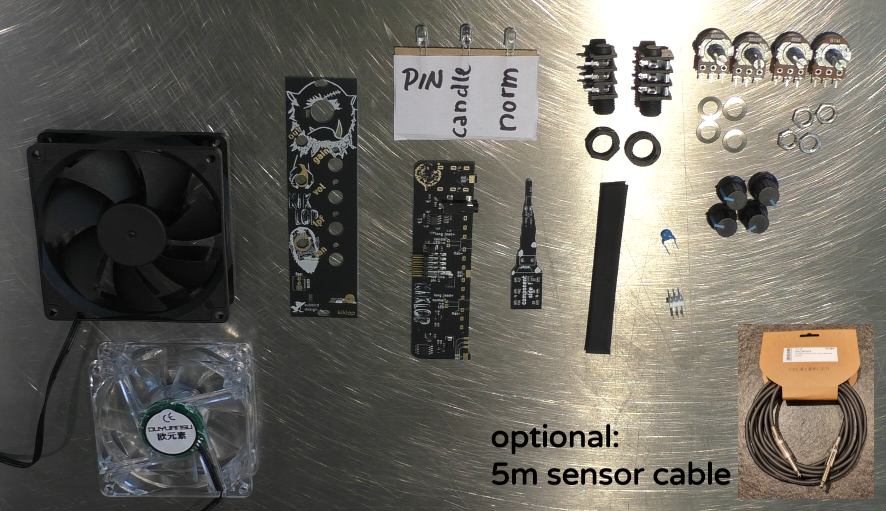

depending on stock KIKLOP is available either fully assembled or as a kit version.

tech specs

• 3U high
• 7HP wide
• 30mm deep
• current consumption:
• - 12V : 50mA without fan, 300mA with fan
• - 5V : nothing
• - -12V : 20mA
• 10 pin standard eurorack power connector
